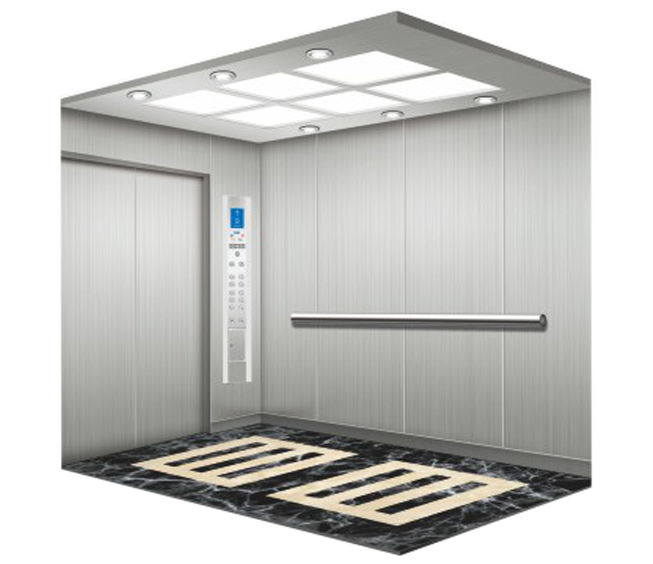

Hospital elevator

Considering the experience of patients and medical staff, the large handrail, braille buttons are equipped for the convenient access of patients. Various door opening methods are designed to meet different requirements of hospital structures.

Elevator Table

Persons	Load/Kg	Speed/ms	Net size of car/mm	Net size of door/mm DWxDH	Hoistway size/mm			Machine room size/mm
Persons	Load/Kg	Speed/ms	CW x CD x OP	2P Cantral opening	HW x HD	OH	PD	OH	HWxHD
21	1600	1	1400x2400x2300	1100x2100	1500x2900	4400	1500	1500x2900	2500
		1.5/1.75				4700	1600
		2				4900	1800
		2.5				5100	2000
24	1800	1	1600x2400x2300	1200x2100	2750x2900	4500	1500	2750x2900	2500
		1.5/1.75				4700	1600
		2				4900	1800
26	2000	1	1700x2400x2300	1200x2100	2850x2900	4500	1500	2850x2900	2500
		1.5/1.75				4700	1600
		2				4900	1800
