MACHINE ROOMLESS PASSENGER ELEVATOR
FJHD machine roomless elevator incorporates the idea of environmental protection and energy saving, saving, saves building areas and raises design freedom, embodying fully green humanistic ideas. Compared with toothed gear elevators of the same weight, it saves 25% electricity and 10% building area. FJHD Elevator breaks the requirements for traditional elevators to be equipped with a machine room and provides infinite possibility to create in a limited space in modern buildings.
It effectively utilizes the space

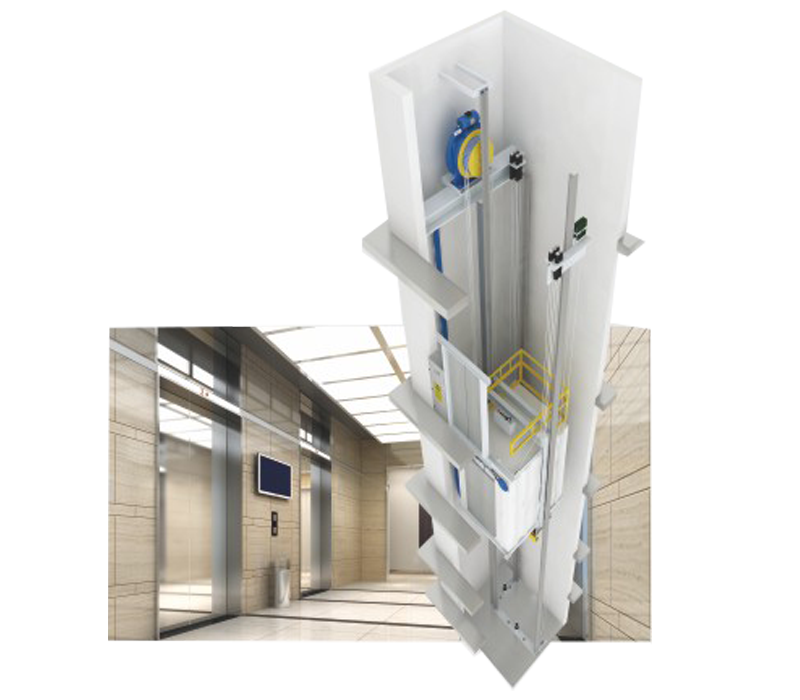

It puts the whole elevator in the well. It removes the restriction of machine room to the building.

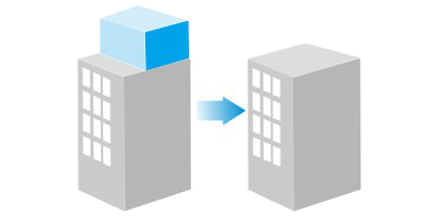

We cancel the machine room to freely design the shaft position. We can flexibly and effectively apply the top space which was preset for machine room.
| Persons | Load/Kg | Speed/ms | Net size of car | Net size of door/mm DWxDH | Hoistway size/mm | ||
|---|---|---|---|---|---|---|---|
| CW x CD x OP | 2P Cantral opening | HW x HD | OH | PD | |||
| 6 | 450 | 1 | 1100x1100x2300 | 800×2100 | 2050×1850 | 4200 | 1500 |
| 8 | 630 | 1 | 1400x1100x2300 | 800×2100 | 2250×1900 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 10 | 800 | 1 | 1400x1350x2300 | 800×2100 | 2250×1950 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 2 | 4800 | 1800 | |||||
| 2.5 | 2000 | ||||||
| 13 | 1000 | 1 | 1500x1550x2300 | 900×2100 | 2350×2150 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 2 | 4800 | 1800 | |||||
| 2.5 | 2000 | ||||||
| 21 | 1600 | 1 | 1900x1800x2300 | 1100×2100 | 2850×2150 | 4500 | 1500 |
| 1.5/1.75 | 4700 | 1600 | |||||
| 2 | 4900 | 1800 | |||||
| 2.5 | 5100 | 2000 | |||||
