SMALL MACHINE ROOM PASSENG ERELEVATOR

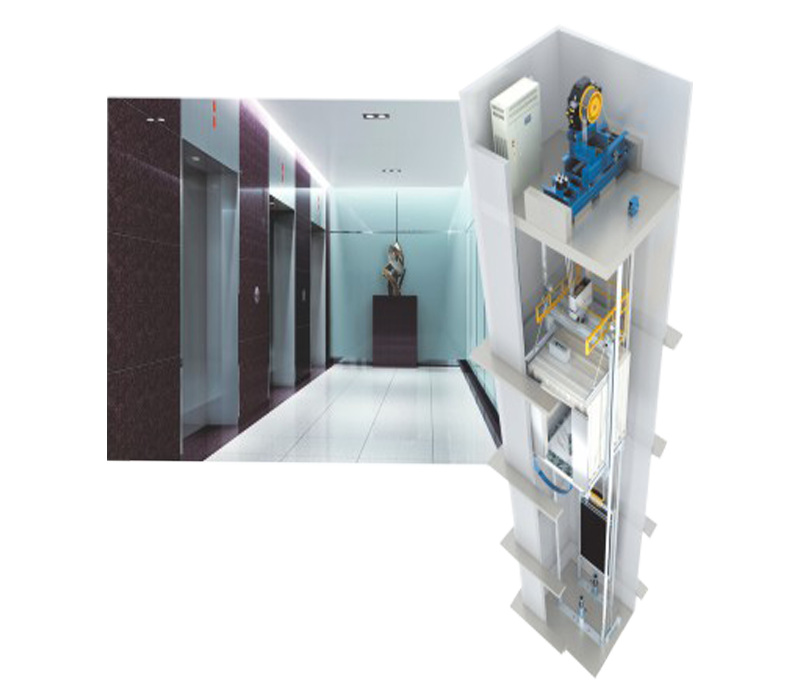

To save the building space expand the building more pace utilization so the operation is sensitive and reliable, and the building more elegant and beautiful. FJHD small machine room passenger elevator applies the compact and concentrative permanent magnet synchronous and gearless traction machine and specially-designed control cabinet. There machine room has same area as that of the well.

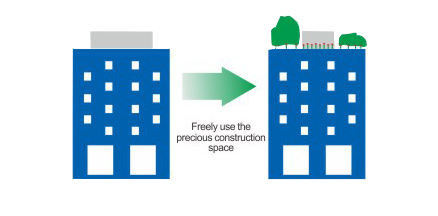

Space-saving is clear at one glance
A machine room is merely an extension to the hoist- way of the elevator. Therefore, the construction of a machine room is easy and inexpensive. The compact permanent magnetic gearless free main unit can reserve larger space for the machine room. During installation, this small main unit requires much lighter hoisting equipment as compared by the one required by the traditional units. It can even be directly hoisted through the hoist-way for installation.

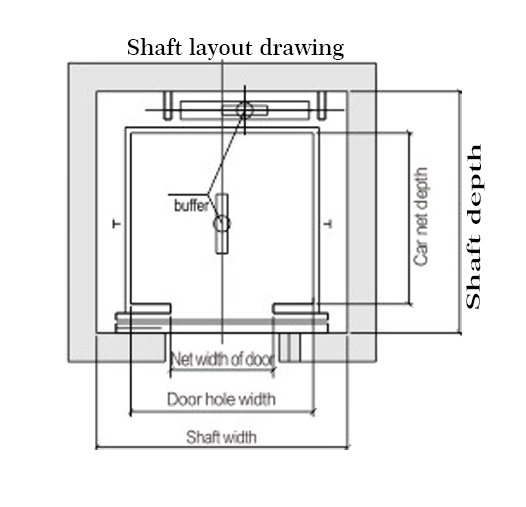

| Persons | Load/Kg | Speed/ms | Net size of car/mm | Net sizeofdoor/mm | Hoistway size/mm | Machine room size/mm | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| CW x CD x OP | 2P Cantral opening | HW x HD | OH | PD | MWx MD | MH | ||||
| 6 | 450 | 1.0 | 1400x850x2300 | 800x2100 | 2000x1500 | 4200 | 1500 | 2000x1500 | 2500 | |
| 1.5/1.75 | 4400 | 1500 | ||||||||
| 8 | 630 | 1.0 | 1400x1100x2300 | 800x2100 | 2000x1720 | 4200 | 1500 | 2000x1720 | 2500 | |
| 1.5/1.75 | 4400 | 1500 | ||||||||
| 13 | 800 | 1.0 | 1400x1350x2300 | 800x2100 | 2000x1970 | 4200 | 1500 | 2000x1500 | 2500 | |
| 1.5/1.75 | 4400 | 1600 | ||||||||
| 2.0 | 4800 | 1800 | ||||||||
| 2.5 | 4800 | 2000 | ||||||||
| 13 | 1000 | 1.0 | 1600x1450x2300 1100x2100x2300 (Residence/stretcher elevator) |
900x2100 | 2200x2100 2100x2500 (Residence/stretcher) |
4200 | 1500 | 2200x2100 2100x2500 (Residence/stretcher) |
2500 | |
| 1.5/1.75 | 4400 | 1600 | ||||||||
| 2.0 | 4800 | 1800 | ||||||||
| 2.5 | 4800 | 2000 | ||||||||
| 3.0 | 5200 | 2600 | ||||||||
| 3.5 | 5500 | 3100 | ||||||||
| 4.0 | 6000 | 3850 | ||||||||
| 16 | 1250 | 1.0 | 1900x1450x2300 | 1100x2100 | 2500x2150 | 4200 | 1500 | 2500x2150 | 2500 | |
| 1.5/1.75 | 4400 | 1600 | ||||||||
| 2.0 | 4800 | 1800 | ||||||||
| 2.5 | 4800 | 2000 | ||||||||
| 3.0 | 5200 | 2600 | ||||||||
| 3.5 | 5500 | 3100 | ||||||||
| 4.0 | 6000 | 3850 | ||||||||
| 21 | 1600 | 1.0 | 1900x1800x2300 | 1100x2100 | 2500x2500 | 4200 | 1500 | 2500x2150 | 2500 | |
| 1.5/1.75 | 4400 | 1600 | ||||||||
| 2.0 | 4800 | 1800 | ||||||||
| 2.5 | 4800 | 2000 | ||||||||
| 3.0 | 5200 | 2600 | ||||||||
| 3.5 | 5500 | 3100 | ||||||||
| 4.0 | 6000 | 3850 | ||||||||
| 6.0 | 1900x1800x2300 | 1100x2100 | 2700x2500 | 6350 | 4300 | 2700x2500 | 2500 | |||
